13m/Min J&C Handle Edge Bander HY310 Can Switch J-PULL C-PULL

J&C Handle Edge Bander HY310 Can Switch J-PULL, C-PULL

• Profiling premilling cutter with 9kw high speed variable frequency motor is specially equipped for handle free cabinet.
• Upper glue pot gluing system+ fast melting device+ granule pump. Gluing height is 110mm.
• Four sets of tape heating unit to ensure glue adhesion for perfect edge bending.
• Special designed profiling pressing mechanism can switch J-PULL, C-PULL.
• The 7.5KW transmission reducer adopts high-efficiency hardened gear surface reducer, which is powerful.
• Equipped with separation, cleanser spraying device and flexible scraping.
• Optional with manual corner rounding machine.

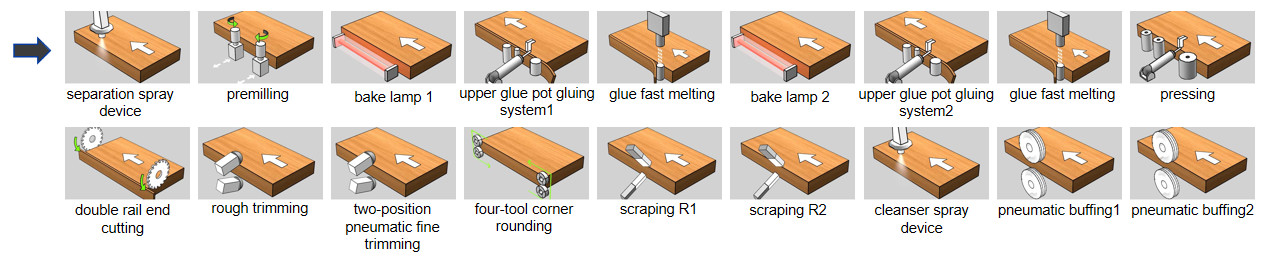

process

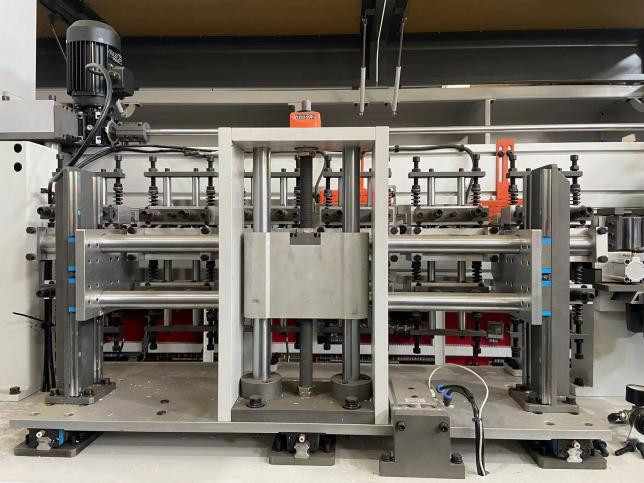

Special designed profiling pressing mechanism

Spray unit


Pre-milling


Upper glue pot gluing system+ fast melting device+ granule pump

About our company

One-stop solution for
interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
