CNC BORING MACHINE Six-Sided ATC HB721H8 With Milling Spindle

CNC BORING MACHINE(six-sided) (ATC) HB721H8

1. Machine frame

• After artificial annealing and aging treatment, long-term use stability is good.
• Through the overall precision machining of the large gantry machining center, the precision is high

2. Main work units

• Front side: 2 drilling units with 12 horizontal drill heads and 12 vertical drill heads, 1pc 9KW ATC spindle.
• Back side: 1 drilling unit with 9 vertical drill heads, 2pcs 6KW spindle.
• Min drilling work piece: 120*30mm.
• Slotting motor press panel is equipped with linear rail and synchronization, improving pressing stability.
• The lower drilling package has an independent air cushion table to ensure the accuracy of the lower drilling.
• Super large pressure-stabilized gas storage tank makes the working pressure stabler. Intelligent side alignment system to check panel width.
• Intelligent measurement detector for panel length.

3. Transmission and core components:

• It adopts precision gear rack transmission. The rack precision is DIN6, and it is ground by a precision grinder. High precision, no special refueling and maintenance are required.
• CNC drill package is HOLD brand, and it also adopts high-grade grinding gear transmission with high accuracy.

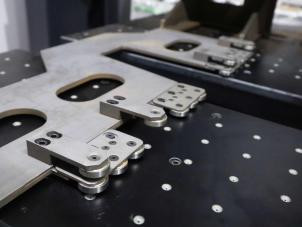

• Two clamp hands are controlled by Servo for accurate positioning. When the gripper moves quickly, the lower gripper plate sinks to avoid touching the panel. Clamps are equipped with blowing function, which can blow off the dust on the gripper and avoid scratching the panel.

4. Dust collection

• Each processing part is equipped with dust collector

5. Software

• Drilling simultaneously
• Slotting up and down simultaneously
• Two panels processing (mirrored)
• Supporting DXF file from CAD software.
• Automatic size identification, docking order design software, displaying the information of the thickness of the four-sided edges, are convenient for placing panel.
• Supporting simulation function, it can check the processing action in advance to avoid wrong processing.
• Big data analysis, it counts the processing times of each boring head up to the set use times, and prompts to change the boring head.
• Processing statistics function: statistics of the QR code information of each panel, processing start time, end time, time spent, and the time interval for placing panels to facilitate employee performance management.
• The processed and waiting-to-processing files are displayed separately, which is convenient to check whether the processing panel is missing.
• Multi-axis NC system, multi-channel technology. Scanning and processing simultaneously to line up panels waiting for processing, it reduces the time for scanning codes. At the same time, the discharging and processing control adopts multi-channel control technology, so the clamp will return to the receiving position for catching new panel once processed panel discharged. The network realizes remote service, remote update, backup, and bus communication technology, which can provide various alarm information more conveniently and in detail, and better connect to the alarm interface of the MES system.

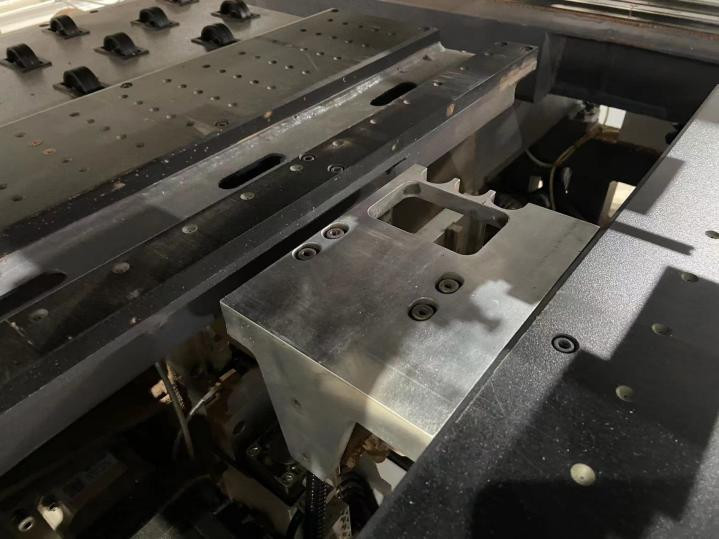

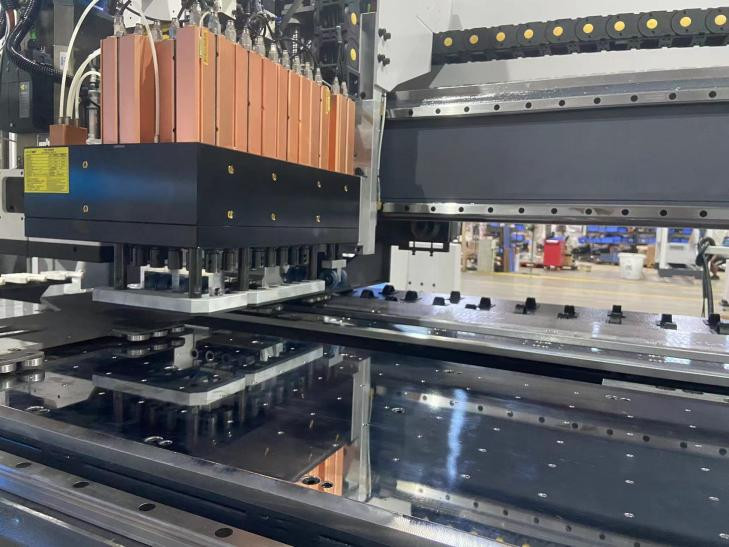

AIR FLOATATION MAIN PLATFORM ( chrome coated):



INDEPENDENT AIR CUSHION PLATFORM:



INTELLIGENT SIDE LEANING DEVICE:

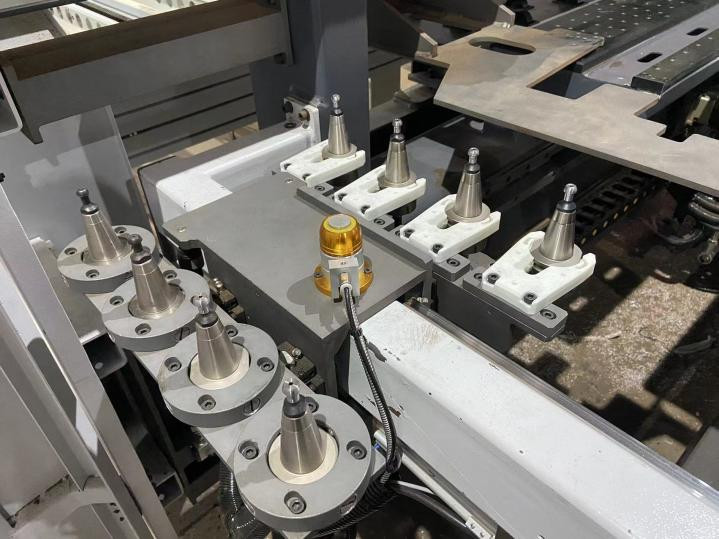

8 TOOLS ATC:
